ISO 7040
» Resources » Dimensional Standards » ISO » Nuts » ISO 7040
» Resources » Dimensional Standards » ISO » Nuts » ISO 7040

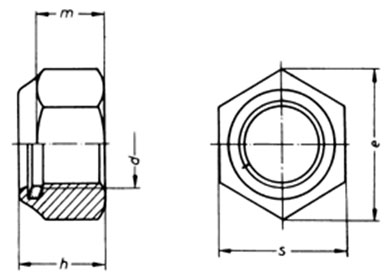

| d | s | e | m min. | H |
|---|---|---|---|---|
| M 5 | 8 | 8.79 | 4.4 | 6.8 |
| M 6 | 10 | 11.05 | 4.9 | 8.0 |
| M 8 | 13 | 14.38 | 6.44 | 9.5 |
| M 10 | 16 | 18.90 | 8.04 | 11.9 |
| M 12 | 18 | 21.10 | 10.37 | 14.9 |
| M 16 | 24 | 26.75 | 14.1 | 19.1 |
| M 20 | 30 | 32.95 | 16.9 | 22.8 |
| M 24 | 36 | 39.55 | 20.2 | 29.1 |
